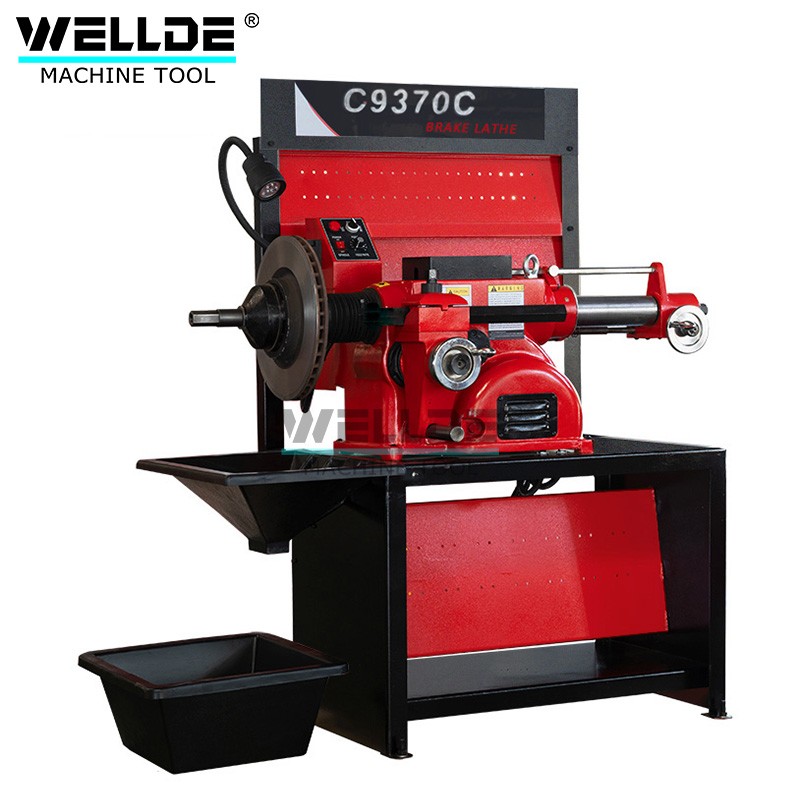

C9370C brake drum disc lathe
Product Introduction:
By changing the position of the belt, the spindle speed can be adjusted.
DC drive can achieve variable feed speed.
Two motors are used to rotate the disc/drum respectively
specifications:
| Model | C9370 | C9370C | |
| Brake disc | Diameter mm | 178-457 | 178-457 |
| Thickness mm | 48 | 48 | |
| Brake drum | Diameter mm | 152-711 | 152-711 |
| Depth mm | 220 | 220 | |
| spindle speed rpm | 70,88,118 | 70,88,118 | |
| Cross feeding capacity mm/r | 0.05/0.25 | 0.-0.4 | |
| spindle feeing capaity mm/r | 0.05-0.5 | 0-0.4 | |
| Motor power kw | 0.75 | 0.75 | |
| Overall dimensions(L*M*H)mm | 1280*1100*1445 | 1280*1100*1445 | |
| Weight kg | 290 | 320 | |
