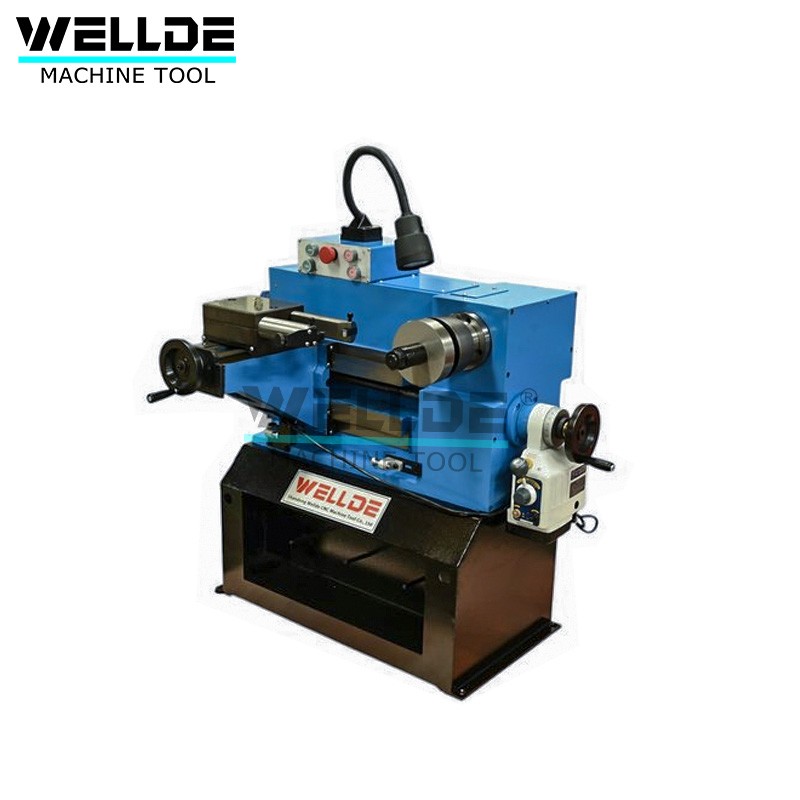

T8445FCV Brake disc drum lathe
Product Introduction:
Adopting a dual spindle structure perpendicular to each other;

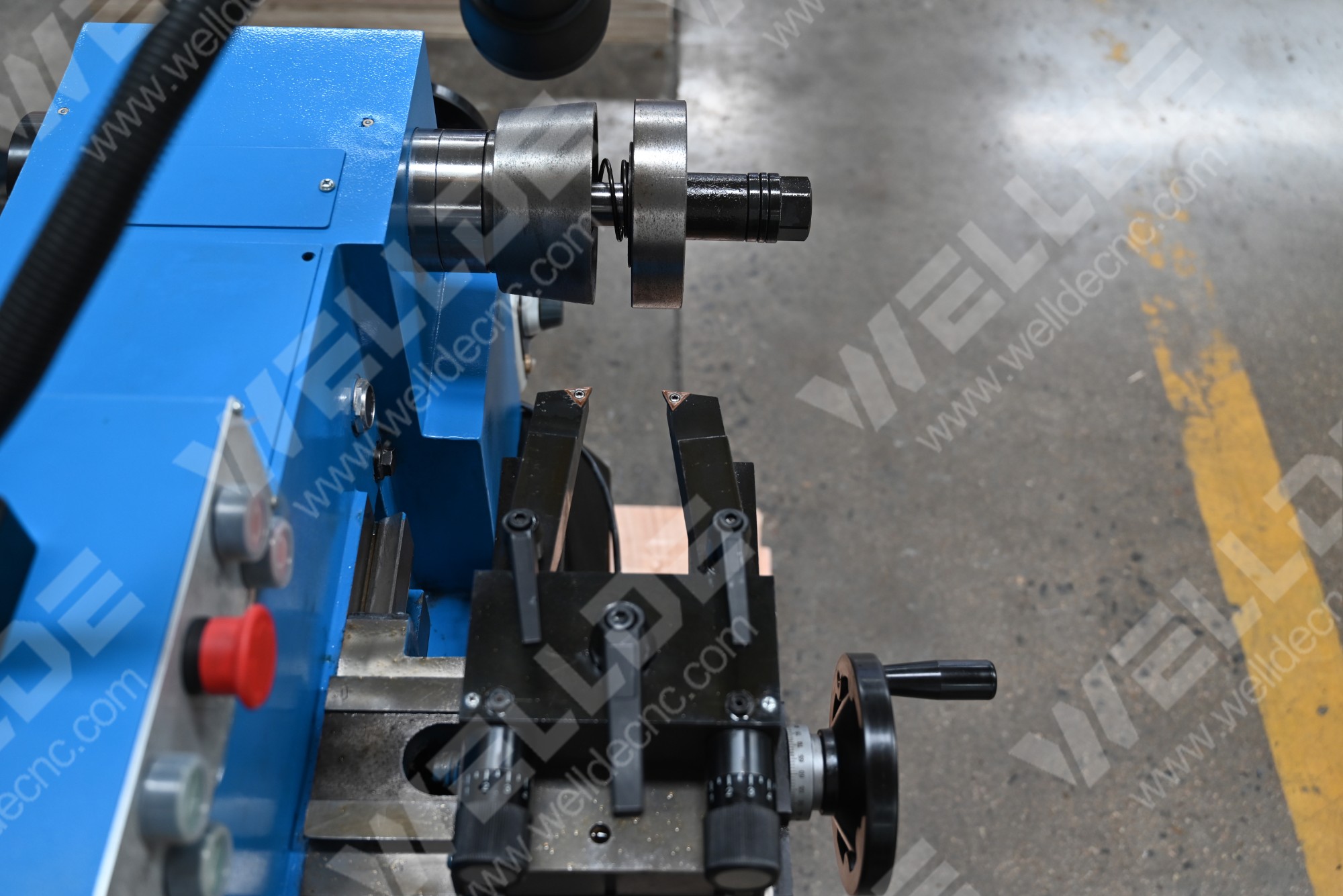

The first spindle can cut brake drums/shoes, and the second spindle can cut brake discs;
High rigidity, accurate processing of workpieces, precise positioning, and convenient operation.
specifications:
| Item | T8445FA | T8445FCV | |
| Brake drum diameter | mm | 180-450 | 180-450 |
| Brake disc diameter | mm | ≤400 | ≤400 |
| Working travel | mm | 170 | 170 |
| Spindle rotation speed | rpm | 30/54/80 | 30/52/85 |
| Feeding capacity | mm/r | 0.16/0.30 | 0.16/0.30 |
| Main motor | Kw/rpm | 1.1/4000 | 1.1/1400 |
| Size | mm | 690*890*880 | 690*890*880 |
| Net weight | kg | 320 | 320 |
| Power | 220v 50hz 3 phase | 220v 50hz 3 phase | |
